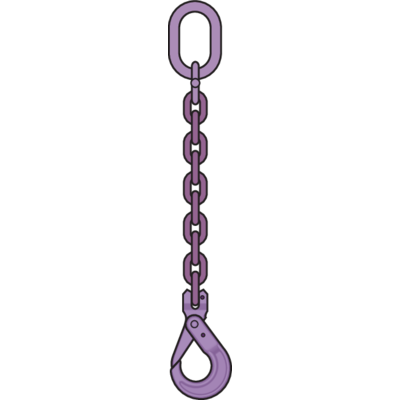

Design: Chain sling with master link on one end and clevis safety hook on the other end.
ø 19 and 22 mm chain are fitted with an eye safety hook. Other combinations possible on demand.

Dimensions: Ø 6–22 mm (other dimensions on demand).

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Temperature range: -40°C up to 200°C (up to 380° possible on demand)
  • Standard: EN 818-4
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button
Part Code WLL CAD
11.91CSX17606XXX 1.4
11.91CSX17607XXX 1.9
11.91CSX17608XXX 2.5
148951 4
148952 6.7
148953 10
148954 14
11.91CSX17622XXX 19

XXX= the length in three digits (1 m = 010, 1,5 m = 015)

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
