Product Picture 1
Currently this product cannot be added to an online quote. Please contact us directly for enquires.
Working load limit (tons) - chain G8
Ø chain

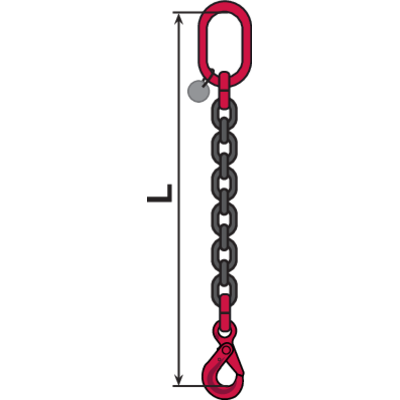

1 leg

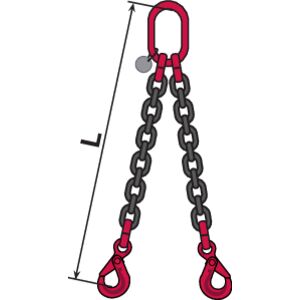

2 legs

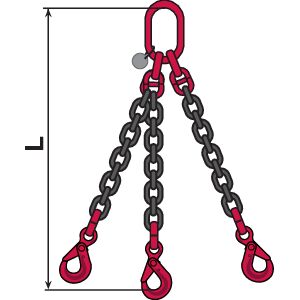

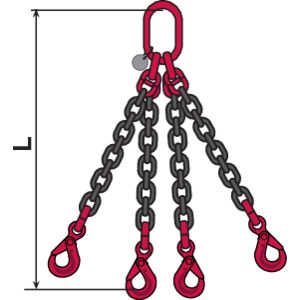

3 - 4 legs
Endless slipknot
1 leg choker
Legs choker: 1 sling 2 legs choker
Simple basket: sling 1 leg (link+hook)
Simple basket: sling 1 leg (2 links)
Doble basket: sling 2 legs (link+hook)
Doble basket: sling with triple link
0º < β ≤ 45º
45º < β ≤ 60º
0º < β ≤ 45º
45º < β ≤ 60º
Factor 1,6
Factor 0,8
0º < β ≤ 45º
0º < β ≤ 45º
0º < β ≤ 45º
0º < β ≤ 45º
0º < β ≤ 45º
mm
Factor 1,0
Factor 1,4
Factor 1,0
Factor 2,1
Factor 1,5
Factor 1,1
Factor 1,0
Factor 1,4
Factor 1,4
Factor 2,1
1 leg
2 legs
3 - 4 legs.....
Endless slipknot
1 leg choker
Legs choker 1 sling 2 legs choker
Simple basket sling 1 leg (link+hook).....
Simple basket sling 1 leg (2 links)
Double basket sling 2 legs (link+hook)
Double basket sling with triple link
6
1,12
1,60
1,12
2,36
1,70
1,80
0,90
1,23
1,12
1,60
1,60
2,36
7
1,50
2,12
1,50
3,15
2,24
2,50
1,20
1,65
1,50
2,12
2,12
3,15
8
2,00
2,80
2,00
4,25
3,00
3,15
1,60
2,20
2,00
2,80
2,80
4,25
10
3,15
4,25
3,15
6,70
4,75
5,00
2,52
3,47
3,15
4,25
4,25
6,70
13
5,30
7,50
5,30
11,2
8,00
8,50
4,24
5,83
5,30
7,50
7,50
11,2
16
8,00
11,2
8,00
17,0
11,8
12,5
6,40
8,80
8,00
11,2
11,2
17,0
19
11,2
16,0
11,2
23,6
17,0
18,0
8,96
12,3
11,2
16,0
16,0
23,6
22
15,0
21,2
15,0
31,5
22,4
23,6
12,0
16,5
15,0
21,2
21,2
31,5
26
21,2
30,0
21,2
45,0
31,4
33,5
17,0
23,3
21,2
30,0
30,0
45,0
32
31,5
45,0
31,5
67,0
47,5
50,0
25,2
34,7
31,5
45,0
45,0
67,0
Safety factor 4.
NOTE: The WLL in these tables refers only to normal conditions of use and symmetric loading.
Working load limit (tons) - chain G10
Ø chain
1 leg
2 legs
3 - 4 legs
Endless slipknot
1 leg choker
Legs choker: 1 sling 2 legs choker
Simple basket: sling 1 leg (link+hook)
Simple basket: sling 1 leg (2 links)
Doble basket: sling 2 legs (link+hook)
Doble basket: sling with triple link
0º < β ≤ 45º
45º < β ≤ 60º
0º < β ≤ 45º
45º < β ≤ 60º
Factor 1,6
Factor 0,8
0º < β ≤ 45º
0º < β ≤ 45º
0º < β ≤ 45º
0º < β ≤ 45º
0º < β ≤ 45º
mm
Factor 1,0
Factor 1,4
Factor 1,0
Factor 2,1
Factor 1,5
Factor 1,1
Factor 1,0
Factor 1,4
Factor 1,4
Factor 2,1
1 leg
2 legs
3 - 4 legs.....
Endless slipknot
1 leg choker
Legs choker 1 sling 2 legs choker
Simple basket sling 1 leg (link+hook).....
Simple basket sling 1 leg (2 links)
Double basket sling 2 legs (link+hook)
Double basket sling with triple link
7
2,00
2,80
2,00
4,20
3,00
3,20
1,60
2,20
2,00
2,80
2,80
4,20
8
2,50
3,50
2,50
5,25
3,75
4,00
2,00
2,75
2,50
3,50
3,50
5,25
10
4,00
5,60
4,00
8,40
6,00
6,40
3,20
4,40
4,00
5,60
5,60
8,40
13
6,70
9,38
6,70
14,1
10,1
10,7
5,36
7,37
6,70
9,38
9,38
14,1
16
10,0
14,0
10,0
21,0
15,0
16,0
8,00
11,0
10,0
14,0
14,0
21,0
19
14,0
19,6
14,0
29,4
21,0
22,4
11,2
15,4
14,0
19,6
19,6
29,4
23*
19,4
27,2
19,4
40,7
29,1
31,0
15,5
21,3
19,4
27,2
27,2
40,7
26
26,5
37,1
26,5
55,7
39,8
42,4
21,2
29,2
26,5
37,1
37,1
55,7
32
40,0
56,0
40,0
84,0
60,0
64,0
32,0
44,0
40,0
56,0
56,0
84,0

Safety factor 4.
NOTE: The WLL in these tables refers only to normal conditions of use and symmetric loading.

*WLL limited for Crosby compatible accessories for this chain

Safety factor 4.
NOTE: The WLL in these tables refers only to normal conditions of use and symmetric loading.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
