Special applications such as the lifting of pumps require user-friendly solutions that simplify work processes and comply with all legal regulations. LCWI loop connector encompasses all of them.
With the loop connector, forming loops even through narrow eyes (they must of course be large enough to feed the chain through) is easy, quick and does not require an additional connecting link. The loops will not tighten and, thanks to the special design, it is no longer necessary to reduce the load capacity down to 80% when using a loop.

  • Marking: CE-marked, Manufacturer's symbol, and batch number.
  • Finish: Pickled and blasted.
  • Safety factor: 4:1
  • Grade: 6
LCWI product picture
LCWI assembly step 1
LCWI assembly step 2
LCWI assembly step 3
LCWI assembly step 4 - finished

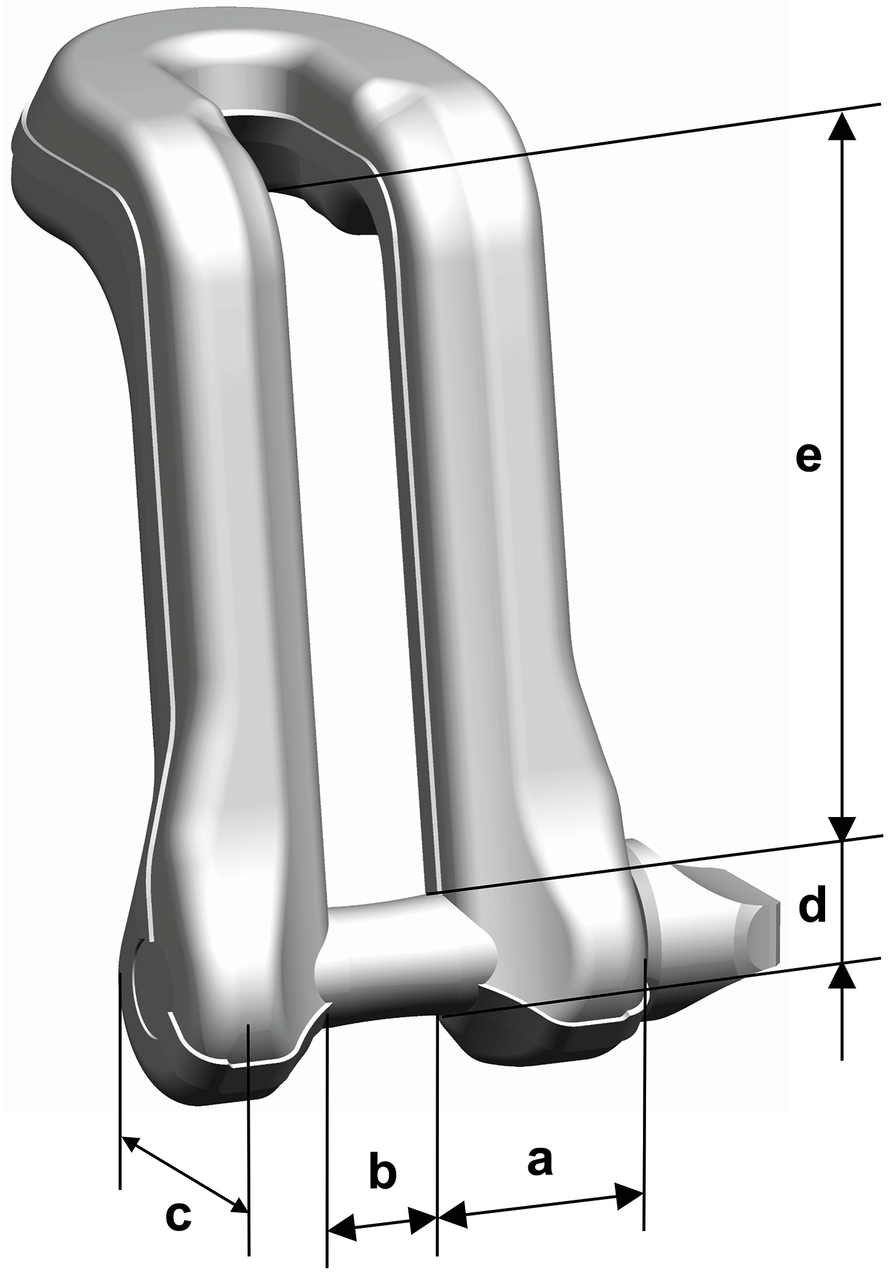

LCWI_measurements
Select a row from the table below, then click the add to quote button
Part Code Code WLL a
mm
b
mm
c
mm
d
mm
e
mm
Weight CAD
11.2474048 LCWI 5-6 C 0.63 10 6 12 6 31 0.068
