Chain Shortener Pewag VLWI Stainless

pewag

Stainless steel shortener for shortening of stainless steel chains, extremely convenient in applications, in assembled systems or for retrofitting.

Preferred areas of application for the VLWI shortener are water and wastewater applications and the product can also be used in connection with chemicals and food products; however, restrictions will apply and we recommend that you contact the manufacturer for advice prior to exposing the product to such use.

Material: VLWI 5/6 - 7/8 1.4571 (shortener) and 1.4404 (BWI) / AISI 316 TI (shortener) and AISI 316 L (BWI).
VLWI 10 - 16 1.4571 (shortener) and 1.4462 (BWI) / AISI 316 TI (shortener) and AISI 318 LN (BWI).

  • Marking: CE-marked
  • Finish: Pickled and blasted.
  • Safety factor: 4:1
  • Grade: 6
VLWI G6 Shortener VLWI Stainless Grade 6
Correct application Correct application
Correct application Correct application
Correct application Correct application
Wrong application Wrong application
VLWI G6
Correct application
Correct application
Correct application
Wrong application
Select a row from the table below, then click the add to quote button

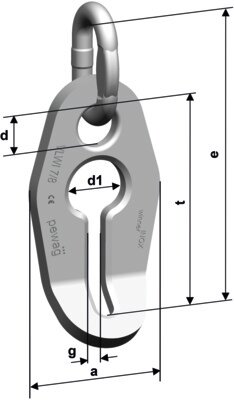

Part Code Code WLL
ton		 a
mm		 d
mm		 d1
mm		 t
mm		 e
mm		 g
mm		 Weight
kg
11.2462906 VLWI 5/6 -6 0,9 52 16 26 80 114 8 0,22
11.2462927 VLWI 7/8 -6 1,6 68 22 34 111 156 11 0,57
11.2462655 VLWI 10-6 2,5 86 27 40 133 186 12 1,06
11.2462894 VLWI 13-6 4,25 108 32 52 169 242 16 2,22
11.2462928 VLWI 16-6 6,3 134 38 64 204 284 20 4,16
