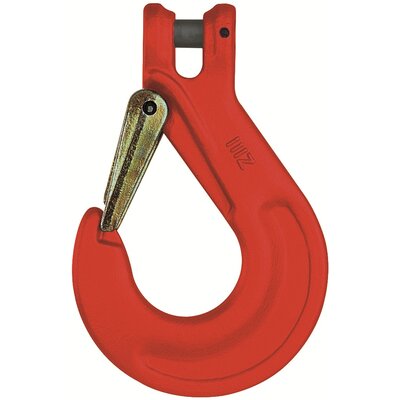

• Features:  Chain Sling Hook with latch European Manufactured, Long service life.
  • Material: Grade 80 Alloy Steel
  • Marking: According to standard, Manufacturer's symbol and Grade
  • Finish: Powder Coated
  • Standard: EN 1677-2
  • Safety factor: 4:1
  • Grade: 8
Lasthaken mGuS HKS neu
HKS-KWB
Select a row from the table below, then click the add to quote button

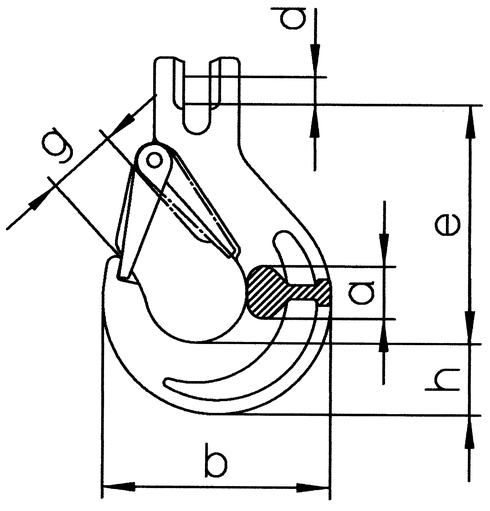

Part Code Code WLL
ton
Chain
mm
A
mm
B
mm
C
mm
G
mm
H
mm
P
mm
R
mm
Weight
kg
163486 HKS 06.8 U 1,12 6 19 7,2 8 15 20 7,4 69 0,2
164395 HKS 07/8.8 U 2 7+8 26 10 10 19 28 9 95 0,6
165282 HKS 10.8 U 3,15 10 31 12 14 25 34,5 12,5 109 1,1
165283 HKS 13.8 U 5,3 13 39 15 17 34 41 16 136 2
165666 HKS 16.8 U 8 16 45 18 22 37 49 20 155 3,5
164818 HKS 20.8 U 12,5 20 53 23 26 51 53 24 183,5 5
HKS 22.8 U 15 22 62 24,5 30 50 62 27 213,5 12,1
