Master Link Assembly

Can be use with chains and wire ropes.

For 3 or 4 legs slings

  • Material: Alloy steel
  • Marking: According to standard
  • Finish: Painted
  • Standard: EN 1677-4
  • Safety factor: 4:1
  • Grade: 8

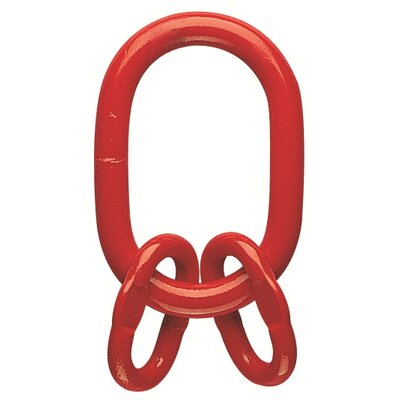

KWB_Aufhängeköpfe mit weiss
KWB_Aufhängeköpfe mit weiss
Select a row from the table below, then click the add to quote button

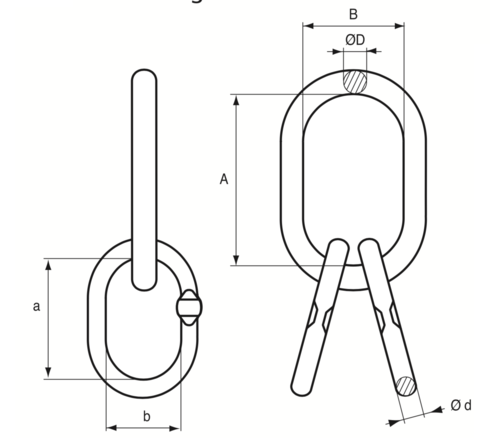

Part Code WLL
ton		 Chain 3 and 4 legs A
mm		 B
mm		 Ø D
mm		 a
mm		 b
mm		 Ø d Weight
kg		 CAD
20005 2.7 6 120 70 16 100 60 13 1.2
20076 3.5 7 135 75 18 100 60 16 1.8
1886 8 8/10 150 90 22 120 70 18 2.9
20078 9 170 95 25 120 70 20 3.9
7670 11.2 13 200 120 28 120 70 20 4.9
42459 13 200 120 30 135 75 22 6
7671 17.6 16 250 150 36 135 75 25 9.6
16624 20 250 150 38 170 95 28 12.6
20074 27 18/20 280 170 45 200 120 33 19.7
42460 32 22 300 200 45 200 120 36 22.5
14081 40 32 300 200 50 150 90 38 24.5
21992 50 26 300 200 55 150 90 38 28
3 60 350 200 58 150 90 42 34.6
14078 80 32 400 250 70 300 150 55 74.7
14079 100 400 250 80 300 150 58 92.4

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
