Can be use with chains and wire ropes.

For one or two legs slings

  • Material: Alloy steel
  • Marking: According to standard
  • Finish: Painted
  • Standard: EN 1677-4
  • Safety factor: 4:1
  • Grade: 8

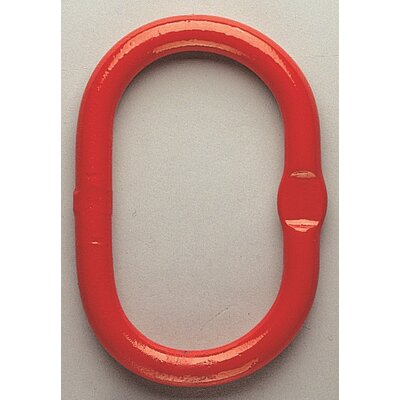

KWB_Ovale aufhängeringe
Select a row from the table below, then click the add to quote button

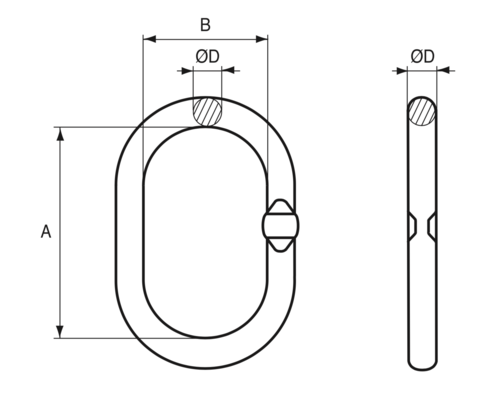

Part Code WLL
ton
Chain 1 leg Chain 2 legs A
mm
B
mm
Ø D
mm
Weight
kg
CAD
20079 2 6/7 100 60 13 0.3
20080 3.15 8 6/7 120 70 16 0.6
42458 5.3 10 8 135 75 18 0.8
20081 6.9 13 10 150 90 20 1.1
1904 8 150 90 22 1.4
20085 11.6 16 13 170 95 25 2
7672 13 200 120 28 3
7673 16 20 16 200 120 30 3.5
21692 21.2 22 250 150 36 6.3
20075 27.7 26 20 250 150 38 7
21653 32.1 280 170 45 9.6
50149 38 32 22 300 200 45 12
42689 50 26 300 200 50 15.1
42690 63 32 350 200 55 20.5
44626 100 400 250 70 39.3
29459 125 400 250 80 52.7

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
