KWB






WARNING! Not to be heat-treated.

  • Material: Alloy steel grade 10.
  • Marking: According to standard, CE-marked, Code and grade.
  • Finish: Painted.
  • Standard: EN 1677-4
  • Safety factor: 4:1
  • Grade: 10
kwb_A_S_225mm
kwb_A_S_m_225mm
Select a row from the table below, then click the add to quote button

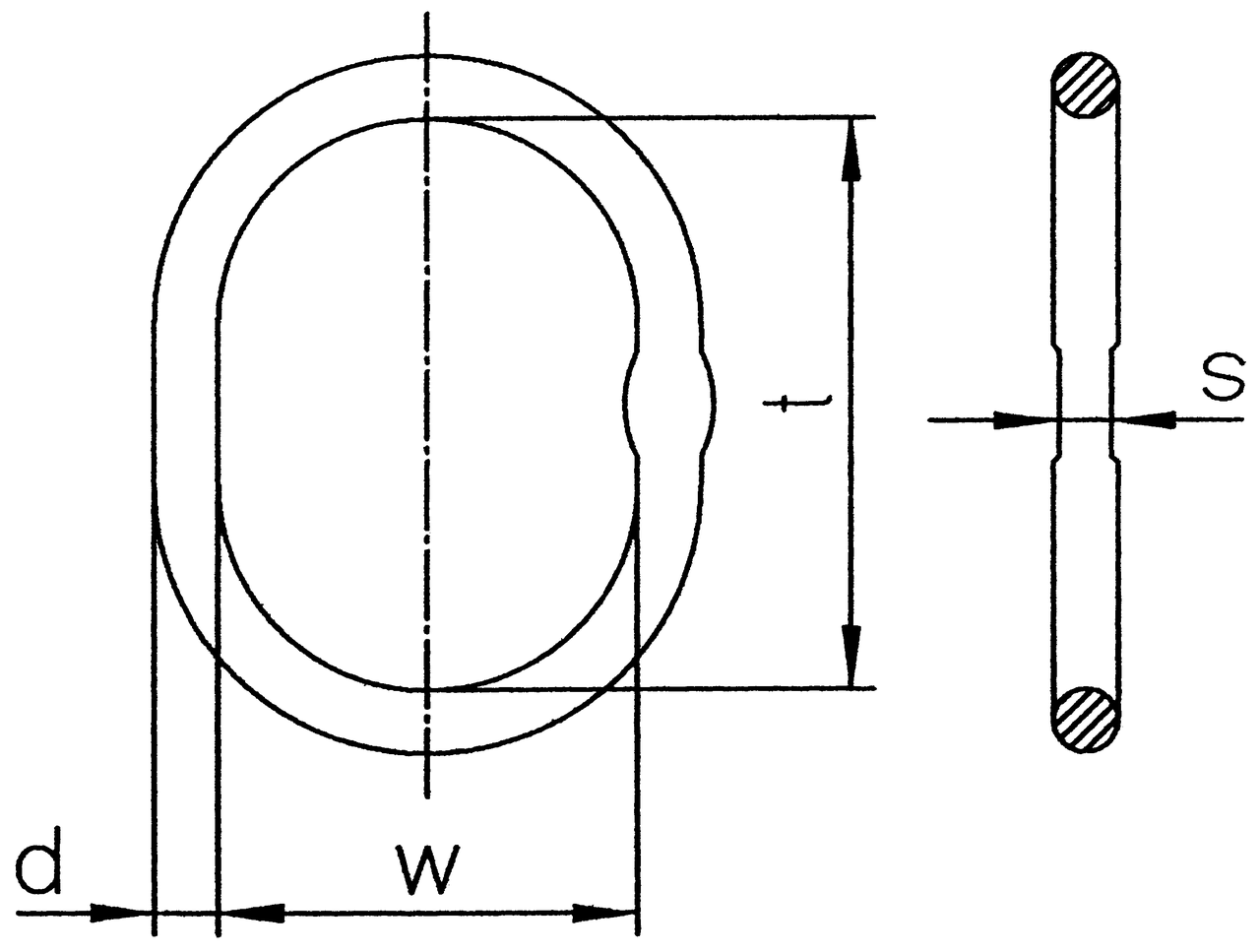

Part Code Code WLL
ton
Chain
mm
D
mm
t
mm
s
mm
w
mm
Weight
kg
11.021262 A/S-13-10 2,3 6 13 110 10 60 0,34
161106 A/S-16-10 3,5 7 16,5 110 14 60 0,53
161110 A/S-18-10 5 8 19 135 14 75 0,92
161111 A/S-22-10 7,6 10 23 160 17 90 1,6
161112 A/S-26-10 10 13 27 180 20 100 2,5
161113 A/S-32-10 14 16 33 200 26 110 4,1
161114 A/S-36-10 25,1 19 36 260 140 6,2
11.0270046 A/S-45-10 30,8 22 45 340 180 13
11.027005 A/S-50-10 40 26 50 350 190 17
