pewag
  • Not for lifting

Lashing chain for a two-part system.

  • Material: Alloy steel
  • Marking: According to standard, CE-marked, Pewag or PW, winner pro or 12, H16, batch code and type.
  • Finish: Light blue powdercoated.
  • Standard: EN 12195-3
  • Note: Must not be used for lifting or attaching loads.
  • Safety factor: 2:1
  • Grade: 12
Zurrkette G12_ZKWP_I_HSWP_HSWP_2017

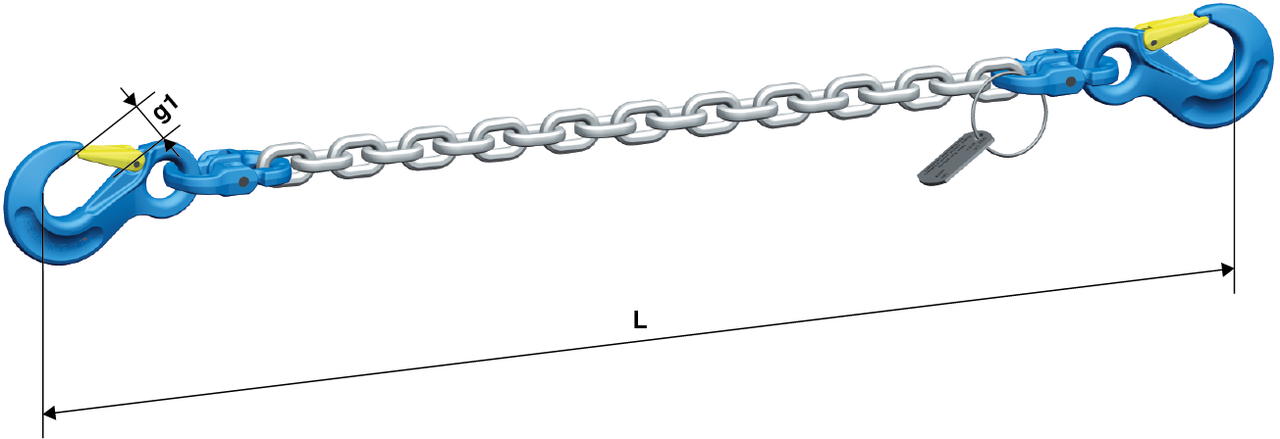

Zurrkette G12_ZKWP_I_HSWP_HSWP_2017_Bemassung
Select a row from the table below, then click the add to quote button
Part Code Code LC
kN
L
mm
Jaw g1
mm
Weight
kg
CAD
14.1189330 ZKWP 7 200 I HSWP-HSWP 3500 CONNEX 47 3.5 26 5.73
14.1189332 ZKWP 8 200 I HSWP-HSWP 3500 CONNEX 60 3.5 26 6.79
14.1189334 ZKWP 10 200 I HSWP-HSWP 3500 CONNEX 100 3.5 31 11.67
14.1174593 ZKWP 13 200 I HSWP-HSWP 3500 CONNEX 160 3.5 39 21.07

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
