General:
- Max. working pressure: 720 bar/ 72 Mpa
- Acting type: double
- Return type: hydraulic
- compact and lightweight
- Usable in all positions
- Protected against ejection of plunger
- Screw-on saddle. Prevents damage to the plunger and is easy to replace.
- Standard fixing thread (designed for maximum cylinder load) on plunger head, on cylinder housing and cylinder bottom

Standard supplied with:
- High Flow female coupler A 118
- flat saddle

Available on request:
- Cylinders manufactured in conformity with customer specifications



  • Material: steel
  • Note: Consult the user manual before fitting cylinder accessories to these cylinders. The maximum working pressure and total construction length is restricted when using cylinder accessories!

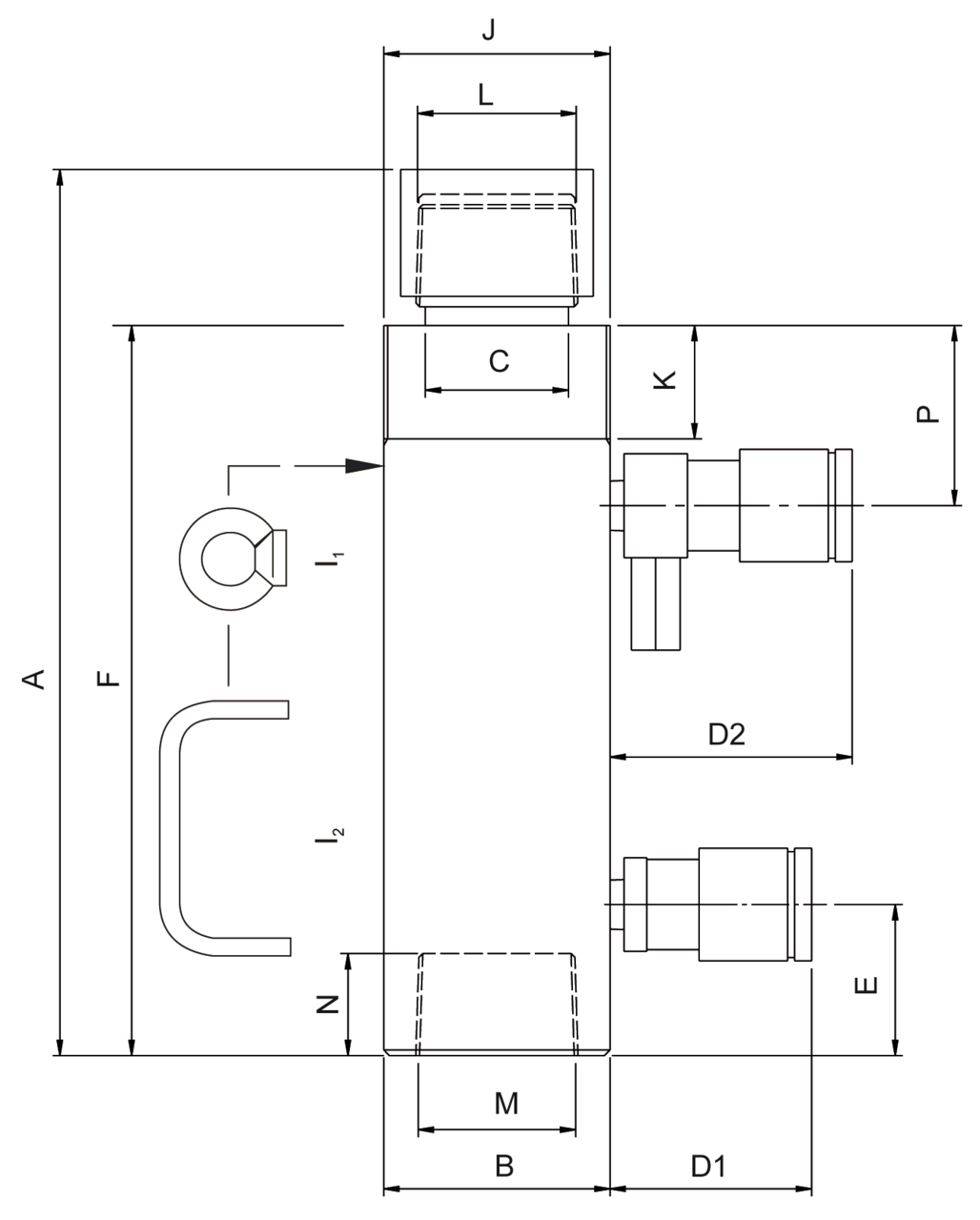

Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button
Part Code Model tonnage tons stroke length
mm
Closed height
mm
A
mm
B
mm
C1
mm
D1
mm
D2
mm
E
mm
F
mm
J thread size K
mm
L thread size M thread size N
mm
P
mm
Weight
kg
16.40100.122.066 HCJ 10 H 15 10 150 338 338 60 30 70 85 40 287 M60 x 2 30 1¼" NPT 1¼" NPT 27 48 6,1
16.40100.122.067 HCJ 25 H 15 25 150 350 350 85 45 70 85 56 297 M85 x 2 40 2" NPT 2" NPT 27 60 12,7
16.40100.122.068 HCJ 25 H 25 25 150 450 450 85 45 70 85 56 397 M85 x 2 40 2" NPT 2" NPT 27 60 18,2
