General: Shortening Eye hook P
Design: Red painted

  • Material: Grade 80 Alloy Steel
  • Marking: According to standard, Manufacturer's symbol and Grade
  • Finish: Powder Coated
  • Standard: EN 1677-1

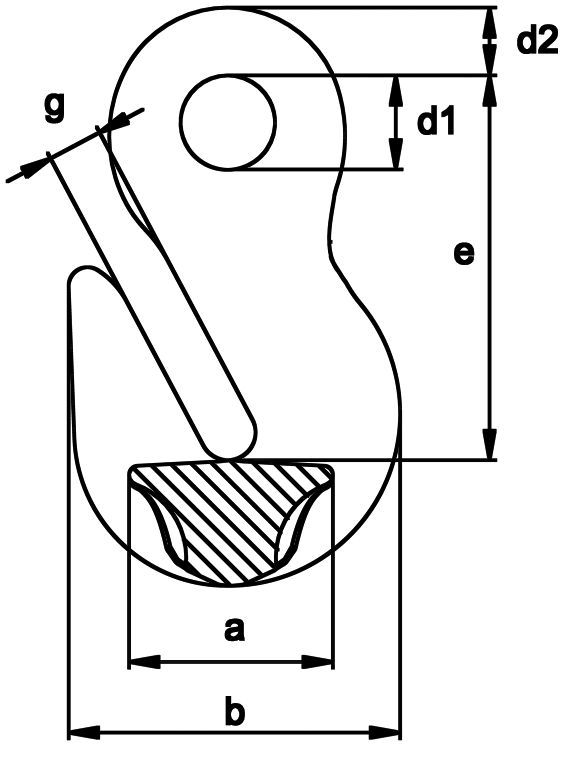

Product Picture 1

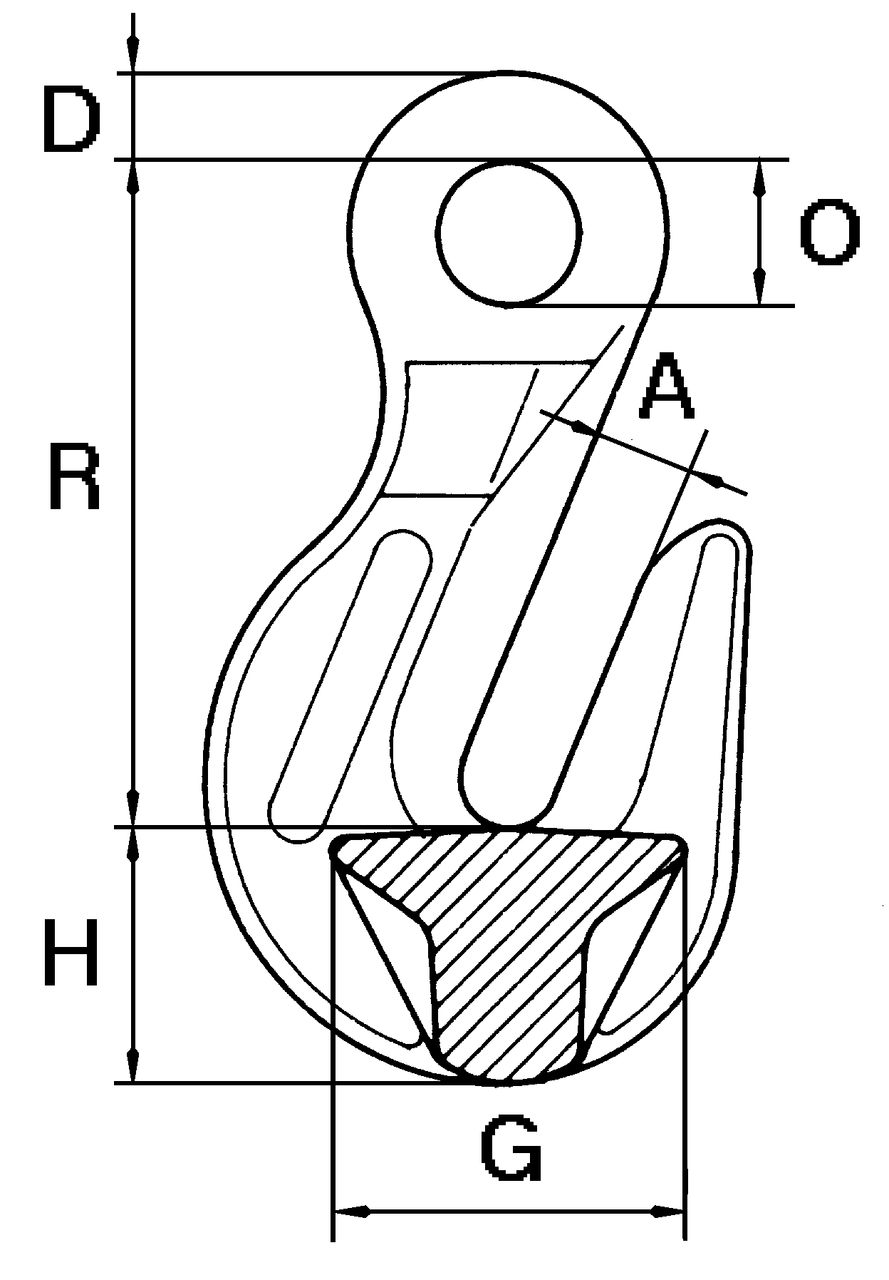

Product Picture 2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
KWB Lifting//Chain inch KWB Lifting//Chain
mm
Weight
kg
CAD
158900 1.12 1/4 6 0.14
158899 2 9/32+5/16 7+8 0.35
156912 3.15 3/8 10 0.65
158867 5.3 1/2 13 1.44
158894 8 5/8 16 2.4
158895 12.5 11/16+3/4 18+20 6.15
158896 15 7/8 22 8.3
158897 21.2 1 26 13.8
158898 31.5 1 1/4 32 20.27

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
