Shortening Clevis hook PK/S Grade 10

Home / PRODUCTS / CHAINS / CHAIN ACCESSORIES / Accessories - Grade 100 Star Alloy / Shortening Clevis hook PK/S Grade 10

General: Shortening Clevis hook. For shortening and for slings that must not tighten. Reduction of load capacity not required due to 4-fold safety.

WARNING! Not to be heat-treated.

Material: Alloy steel grade 10.
Marking: Code and grade.
Finish: Purple painted.

Select a row from the table below, then click the add to quote button

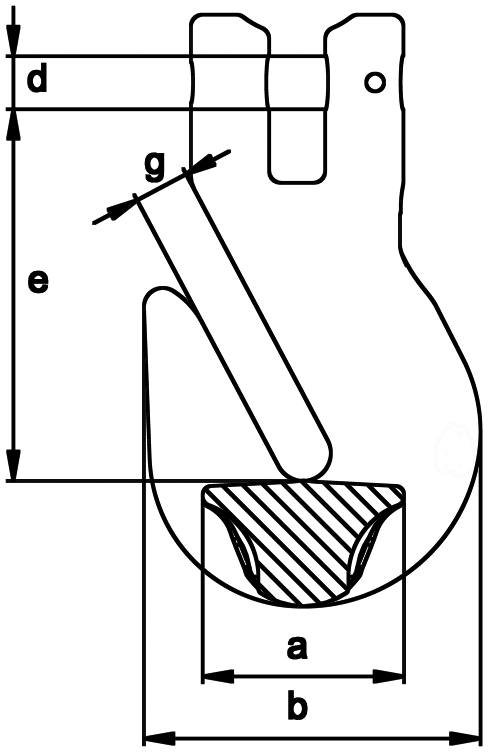

Part Code	WLL ton	KWB Lifting//Chain inch	KWB Lifting//Chain mm	A mm	B mm	D mm	e mm	g mm	Weight kg
11.16KWBPK/S6	1.4	1/4	6	26	42	7.4	47	9	0.2
11.16KWBPK/S7	1.9	9/32	7	35	56	9	63	9	0.46
161141	2.5	5/16	8	35	56	10	63	9	0.3
161142	4	3/8	10	46	70	12.5	78	15	0.9
161143	6.7	1/2	13	60	92	16	93	15	1.71
161144	10	5/8	16	70	113	20	115	19	3.24
161145	16	3/4	19/20	84	150	24	141	27	6.55
161146	19	7/8	22	91	165	27	158	27	9.28

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
